Autel MaxiSYS MS908S Pro II Vehicle Full System Intelligent 128GB Diagnostic Scanner Tablet, J2534 ECU Programming and Coding Support Active Tests
$1,933.00
MaxiSYS MS908S Pro II is a 9.7-inch touchscreen advanced diagnostic tablet powered by an Octa-core processor with 128GB of storage memory running on Android 10. Includes Bluetooth-enabled MaxiFlash VCI/ J2534 pass thru programming device. The MS908S Pro II can read/erase codes on all available systems, perform bi-directional active tests, view...
MaxiSYS MS908S Pro II is a 9.7-inch touchscreen advanced diagnostic tablet powered by an Octa-core processor with 128GB of storage memory running on Android 10. Includes Bluetooth-enabled MaxiFlash VCI/ J2534 pass thru programming device. The MS908S Pro II can read/erase codes on all available systems, perform bi-directional active tests, view freeze frame data, view and graph live data, and perform adaptations and coding on U.S., Asian and European vehicles, 1996 and newer.
- Qualcomm 660 Octa-core processor (2.2GHz Quad-core A73 + 1.8 GHz Quad-core A53)
- 9.7-inch touchscreen Wi-Fi tablet

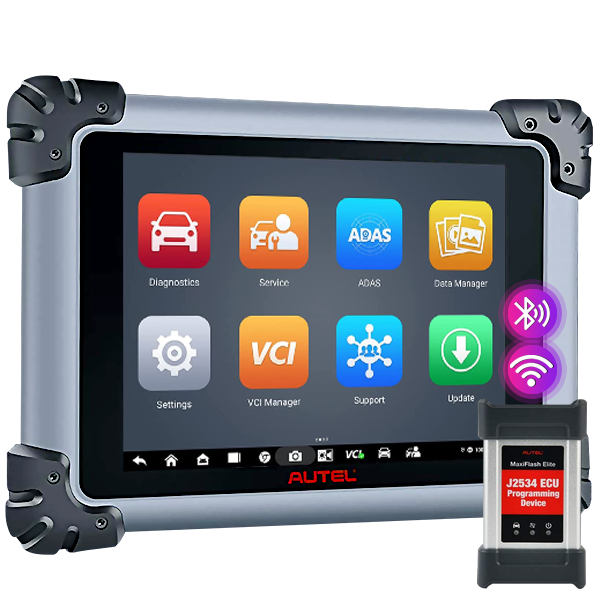

- Bluetooth-enabled VCI/J2534 pass thru programming device with wireless range up to 70 meters
- Rechargeable lithium battery delivers 7.5 hours of continuous performance on a single charge
- Comprehensive Service Menu for direct access to most commonly performed service tasks
- 128G large storage memory for maintaining of all needed brand diagnostics software
- Android 10.0 operating system
- Extensive vehicle coverage •Comprehensive Service Menu for direct access to most commonly performed service tasks
- Read/Erase Codes on all available systems
- Perform bi-directional active tests
- Perform adaptations and coding
- View freeze frame data and view and graph systems live data
Features

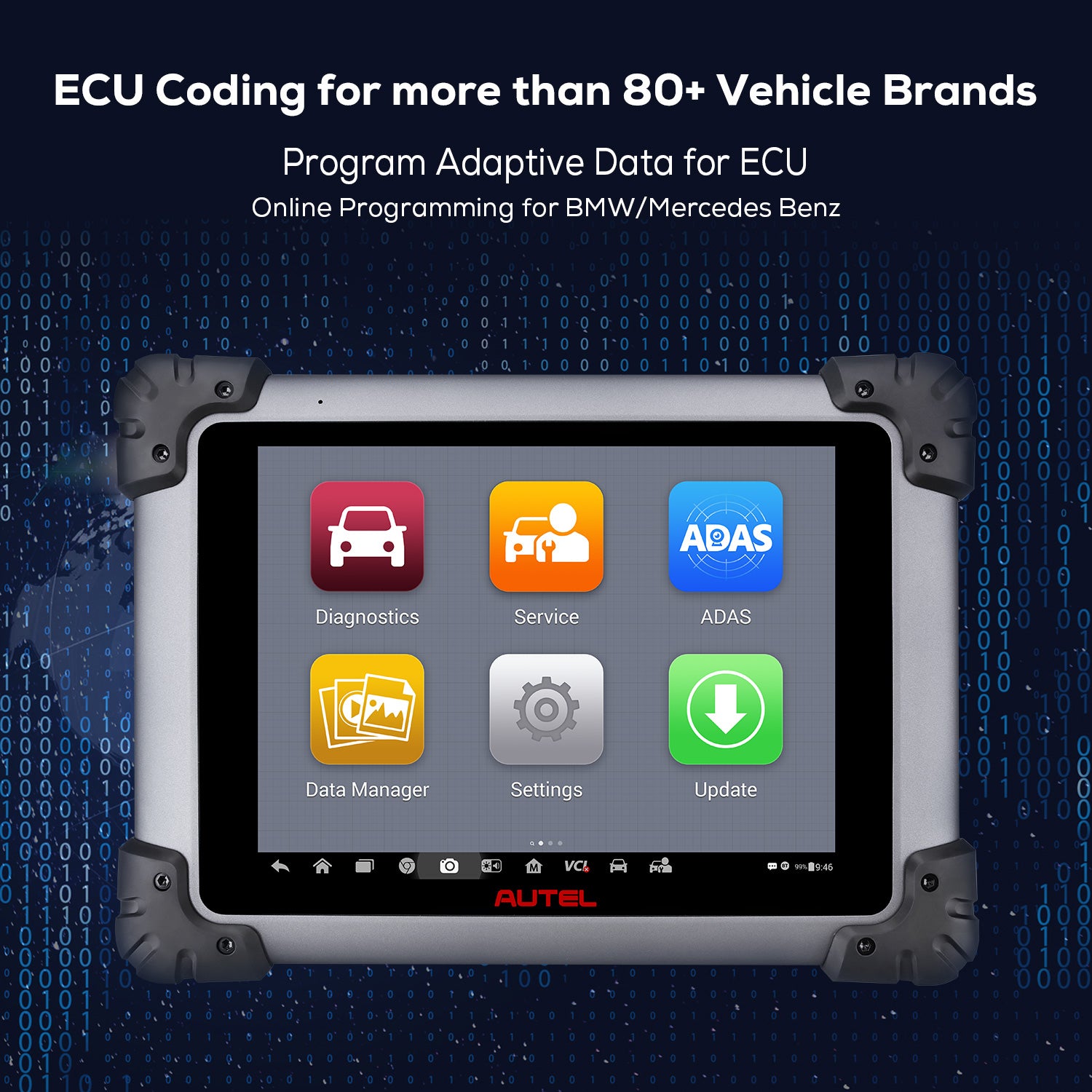

VCI-J2534 ECU Programming & Coding
Autel MaxiSys MS908sPro II assemable with J2534 ECU Programming Device(SAE J2534-1&2 compliant PassThru), it's capable of replacing the existing software/firmware in Electronic Control Units, programming Benz/BMW new ECUs and fixing software-controlled Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts and Emission issues. The J2534 ECU programming device supports BlueTooth communication(about 210ft) and USB connection.
All System Diagnostic & Advanced Maintenance Services
All System Diagnostic & Advanced Maintenance Services
Autel Diagnostics application can access the ECM of various vehicle control systems after VCI connection. The Maintenance Service covers vehicle Oil Reset/EPB/TPMS(sensor activate)/BMS/ABS/Aftertreatment/IMMO(keys programming for special vehicles)/ forced vehicle fuel injector regeneration/ SAS/ Suspension/ Throttle/ Win Dr Roof/ Seats/ Odometer/ Lang Change/ Headlamp/ CHG tire size/ TEC learn/ SRS/ Cylinder/ VGT learn/ Speed&PTO/ Clutch/ Trans adaption/ Airbad reset/ AF setting.
Upgraded of MaxiSysPro, Different Specifications from MaxiSys Elite / MK908
Upgraded of MaxiSysPro, Different Specifications from MaxiSys Elite / MK908
Autel MaxiSys Series, the MS908s Pro II Diagnostic Tool features Samsung Exynos Six-core Processor(1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15), provides extended 11000mAh battery life and intelligent power saving, equips with 9.7-inch LED capacitive touch screen, extraordinary 64G On-board Memory and operates on Android 4.4.2 KitKat Operating System.
Extraordinary Autel MaxiSys Application System
Extraordinary Autel MaxiSys Application System
The MaxiSys MS908sPro II software includes a large suite of useful applications including Diagonstics/Maintenance Service/MaxiFix/Shop Manager/Data Manager/VCI Manager/Support/Academy/Remote Desk/Remote Diagnosis/Quick Link/Function Viewer/Digital Inspection/MaxiScope/ADAS. The advanced automotive diagnostic scan tool to help technicians repaire and manage vehicles with high-effiency.
1 Year Warranty & Software Updated
1 Year Warranty & Software Updated
One Year Free updated through Autel Update Application. The MS908s Pro II Tablet automatically searches for available updates for all of the MaxiSys components when it's connected to the Internet. Any updates software could be downloaded and installed on the device. 7*24hours Local Technical Support & Satisfaction Guarantee.
Specifiction
| Operating System | Android 10.0 |
| Processor | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM &128GB On-board Memory |
| Display | 9.7 inch LED capacitive touch screen with 2048x1536 resolution |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac)USB 2.0 (2 USB TYPE-A ports and a Mini USB port) BT V5.0 + BR/EDRSD Card (Support up to 64GB)HDMI |
| Camera (rear) | 16 Megapixel, AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | 11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
| Input Voltage | 12V (9-24 V) |
| Power Consumption | 6.5W |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Dimensions(WXHX D) | 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) |
| Weight | NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.) |
| Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN,GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,SAE J1708, Fault-Tolerant CAN |
